Sollas packaging machinery is well-known worldwide for its excellent packaging quality, at realistic prices. Continual innovation, together with the constant introduction of improved technology, maintains the high standards that are demanded by Sollas.
The most important features of the Sollas 20 in short;

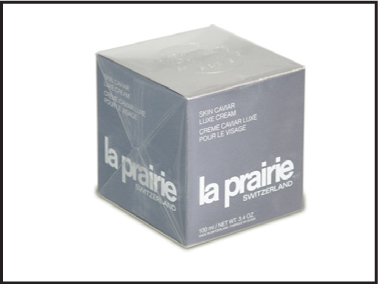

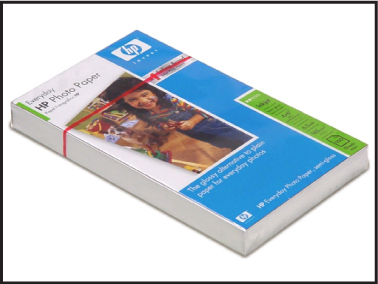

Sollas machinery is used in a wide range of industries such as perfumes/cosmetics, pharmaceuticals, stationery, cards, digital media, tea/coffee, confectionery and foods. The machines, which are compact in their design, are easily adjusted to accommodate a wide range of product-sizes.

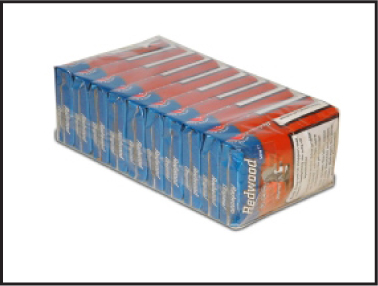

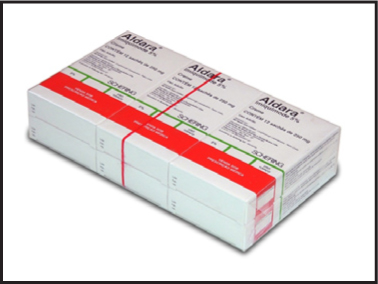

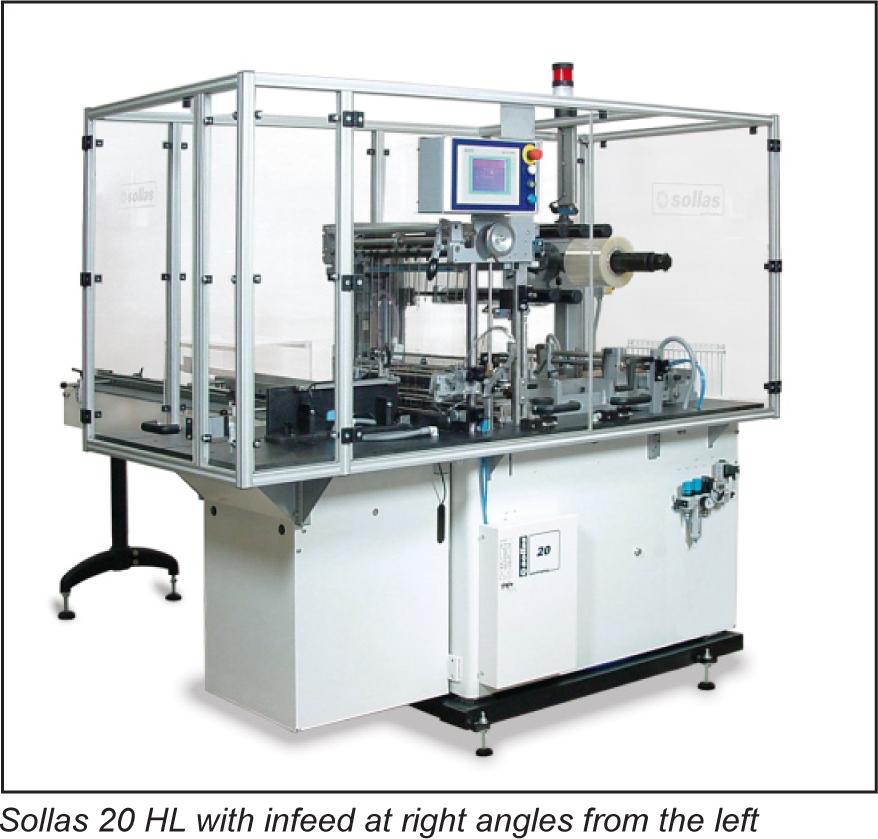

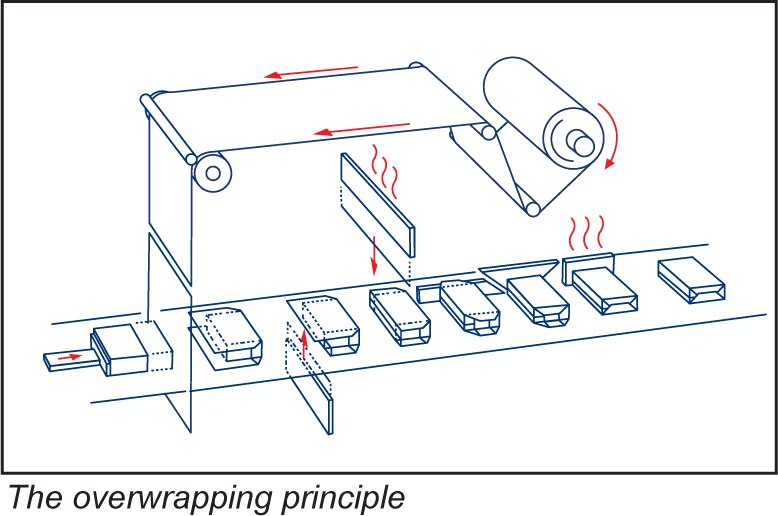

The Sollas 20 is a versatile overwrapping machine that can be supplied with various feeding systems. The machine has proven itself at thousands of satisfied customers worldwide in many different industries. The products can be wrapped either as single packs or in bundles. Because of its flexibility and easy operation, the Sollas 20 is one of the best-known overwrapping machines available.
technical details |
|
|
|
|||
all dimensions are in millimetres |
|
|
|
|||
product size range |
|
Sollas 20 |
|
|||
|
|
L |
|
W |
|
H |
minimum standard |
|
45 |
|
40 |
|
16 |
minimum adapted1) |
|
35 |
|
35 |
|
7 |
maximum standard |
|
300 |
|
200 |
|
96 |
maximum adapted1) |
|
360 |
|
240 |
|
140 |
output2) |
|
50 strokes per minute |
|
|
|
|
basic configuration |
|

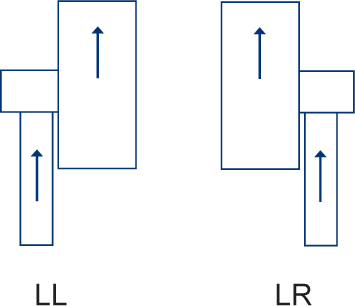

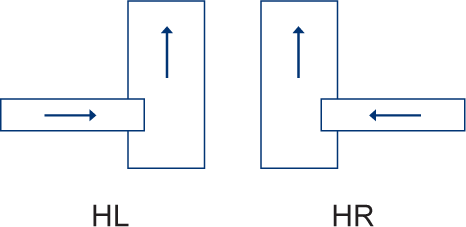

HL / HR / LL / LR |
|
|
|
|
size change time2) |
|
10 - 20 minutes |
|
|
|
|
film width |
|
50 - 420 |
|
|
|
|
|
320 mm |
|
|
|
||
packaging material3) |
|
PP, coated paper, etc. |
|
|
|
|
air consumption |
|
4 nl / stroke (without accessories) |
|
|||
working pressure |
|
6 bar |
|
|
|
|
power consumption |
|
2.5 kW (without accessories) |
|
|||
machine weight (nett) |
|
950 kg approximately |
|
|
|
|
machine dimension |
|
see sketch below |
|
|
|
|
machine colour |
|
RAL 9010 (white) |
|
|
|
|
optional accessories |
|
teartape applicator, printmark registration, film slitting, castors, |
||||
|
|
various infeed systems, stainless steal cladding, perfumery |
||||
|
|
style spot/stripe seals, felt linings, special colour, Universal |
||||
|
|
Folding Section (no change parts needed!) |
|
|||
drive system |
|
cam / servo |
|
|
|
|
control system |
|
PLC (Siemens or Rockwell Automation) |
|
|||
1) please be aware that certain modifications can result in restrictions in other dimensions or machine output
2) depending on product, machine configuration and packaging material
3) In principle all commonly used heat-sealable wrapping materials can be used. In case of doubt, Sollas will gladly test any kind of material you may wish to handle.
All Sollas machines can be equipped with a variety of infeed and outfeed systems (feeders, collators, turning, tilting). Integration is also possible with upstream and/or downstream equipment like case-packing, cartoning, stacking, banding and personalising.
